How to View Details of Flight?

The details of individual flights can be viewed for any reference or to view the documents attached to it.

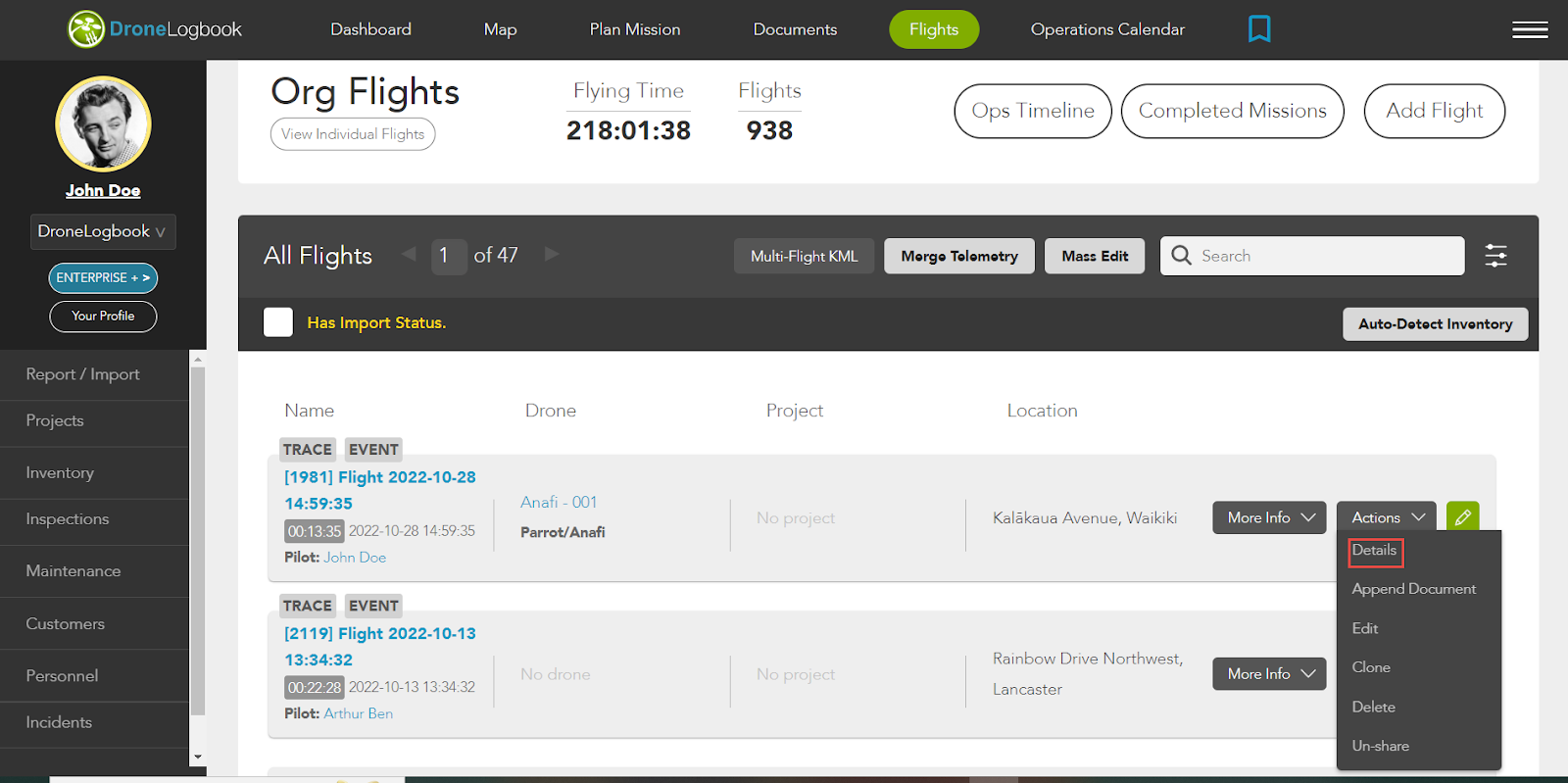

1.  Navigate to Flights > click Actions on the row of the flight you wish to view.

The Actions dropdown list is displayed.

2.  Click Details.

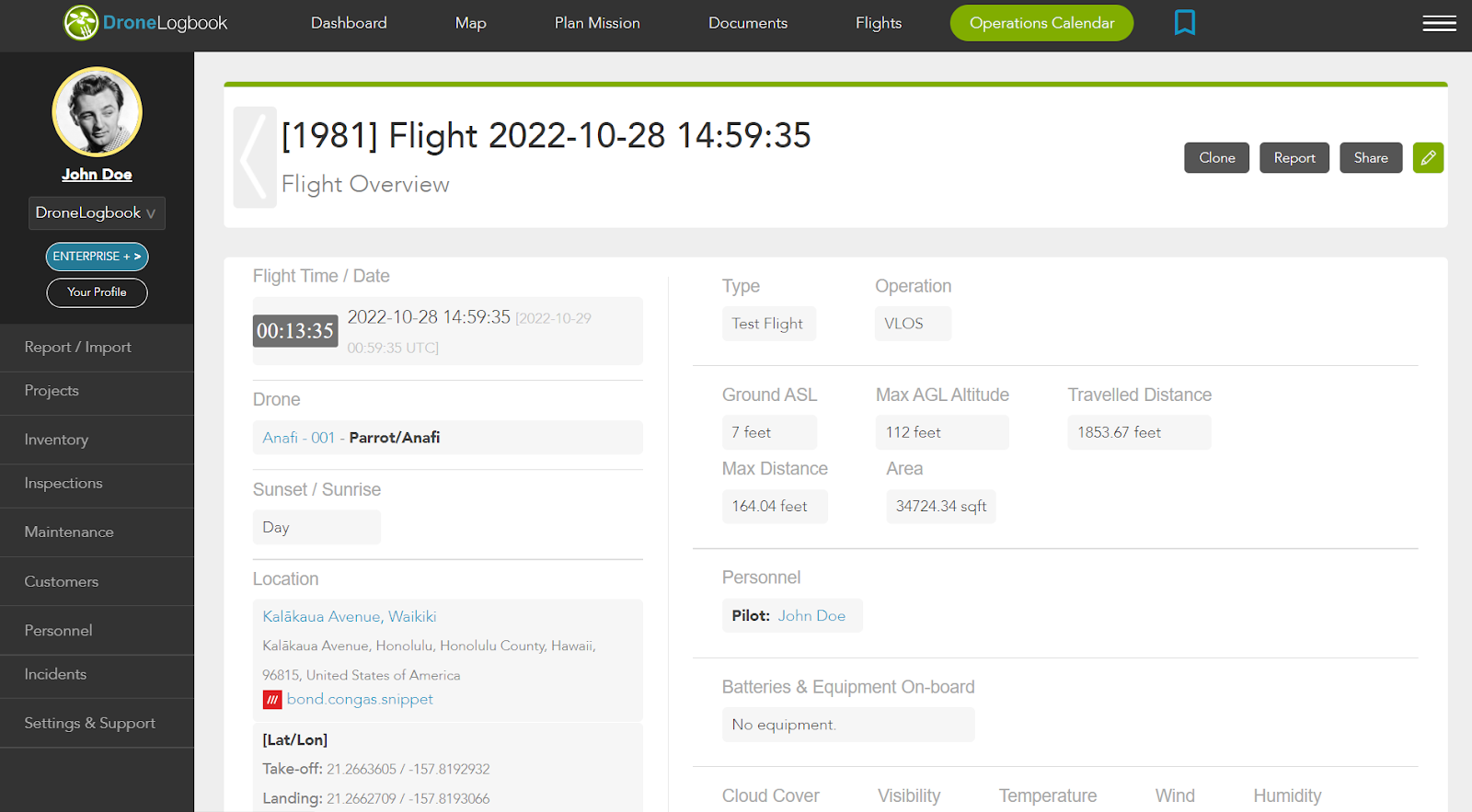

The Flight Overview page is displayed.

The Flight Overview page allows you to clone, create reports, and share the flight data as needed.

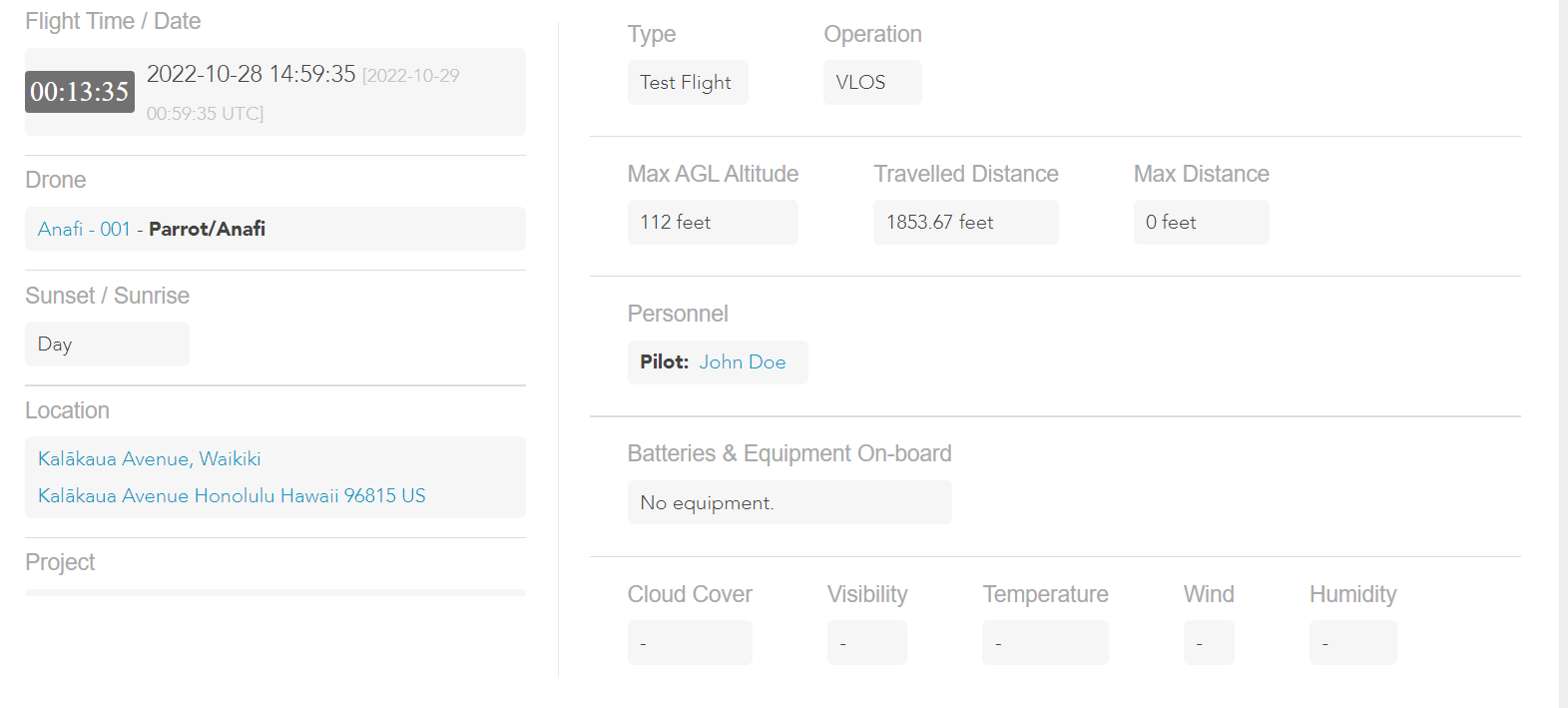

It also displays the following -

• Flight Time/ Date - Shows the time and date the flight was taken.

• Type - Shows the type of flight.

• Operation - Shows the operation of the flight.

• Drone - Shows the name and model/ make of the drone used during the flight.

• Ground ASL - Shows the ground above sea level of the drone.

• Max AGL Altitude - Shows the maximum ground level altitude attained in the flight.

• Traveled Distance - Shows the total distance traveled during the flight.

• Location - Shows the location of the flight.

• Pilot - Shows the name of the pilot.

• Batteries & Equipment On-board - Shows the hardware used during the flight.

• Weather section - Shows the cloud cover, visibility, temperature, wind, and humidity during the flight.

• Project - Shows the project name for which the flight was operated.

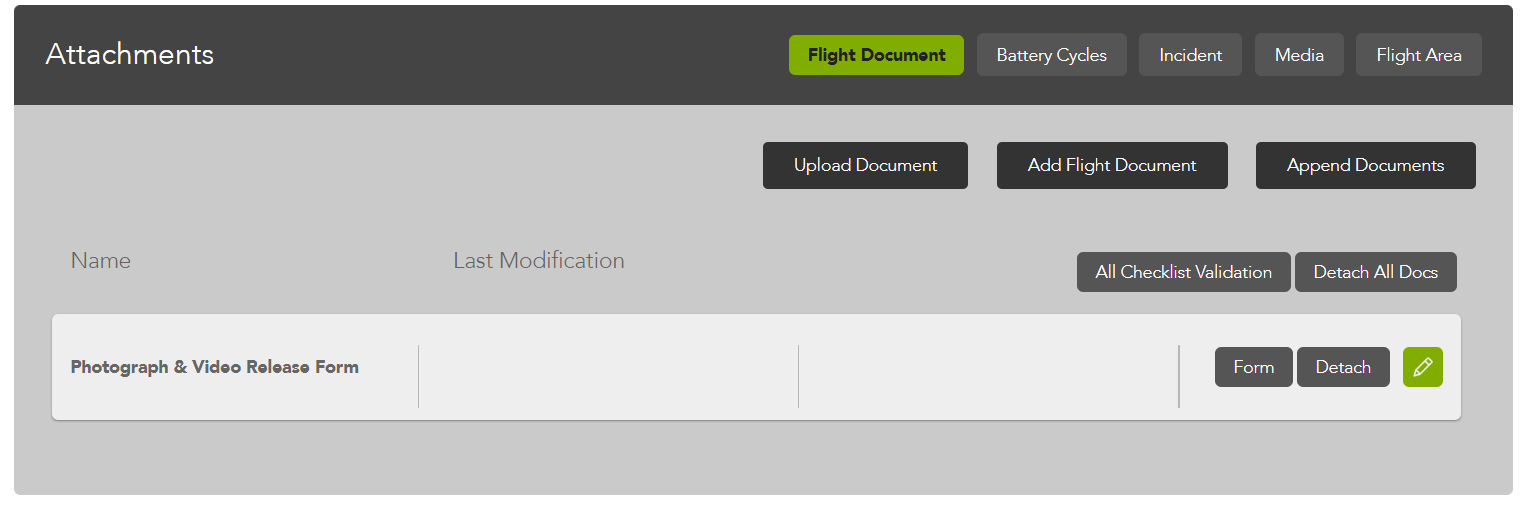

• Attachments section - Allows you to view and manage the flight documents attached to the flight, battery cycle during the flight, details of any incident taken place during the flight, media coverage of the flight, and the details of the flight area.

For more information, refer to the following sections.

Documents

Plan Mission

How to Add/ Edit Incidents Details?

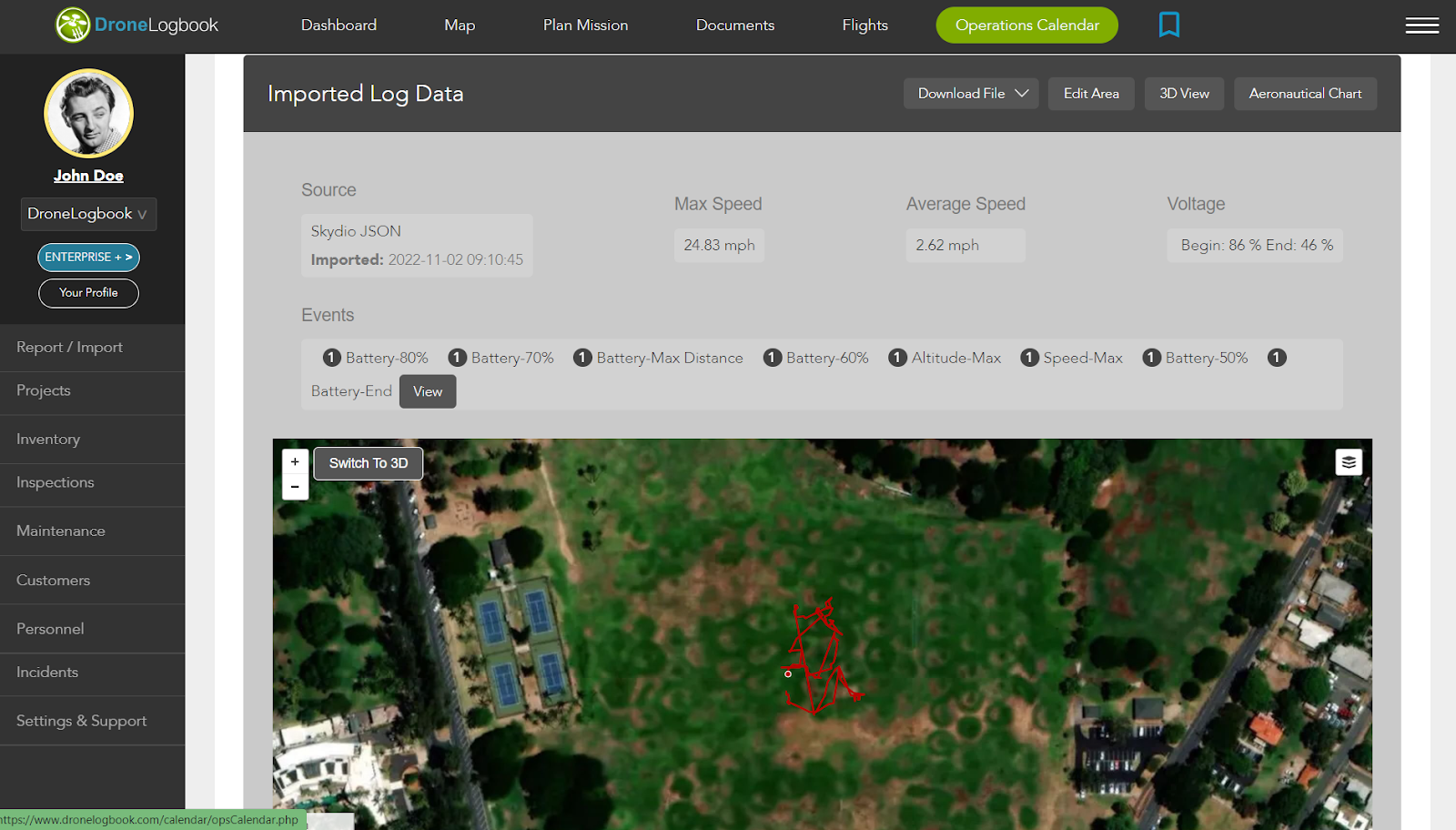

• Imported Log Data section - Allows you to download the file, edit the area of the flight, have a 3D view, and view the aeronautical chart of the flight.

For more information, refer to the following sections:

Plan Mission

How to Reset Flight Area?

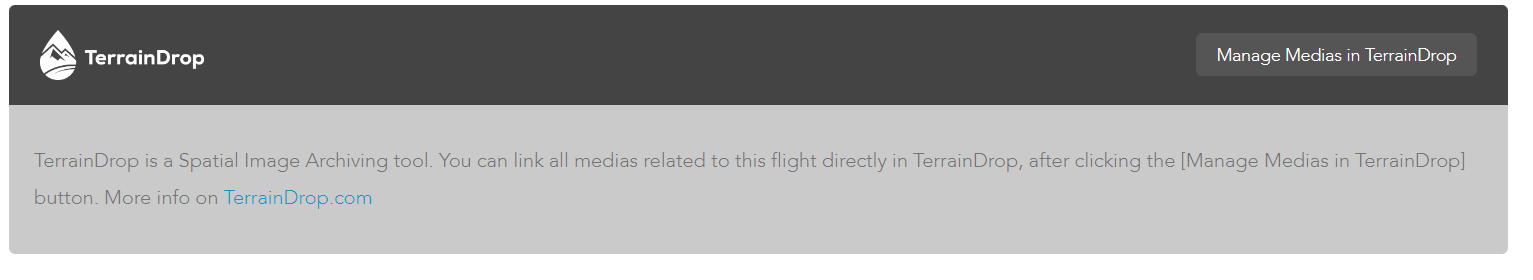

• TerrainDrop section - Allows you to manage media related to the flight directly on TerrainDrop.
