How to send eMotion log files to your DroneLogbook account

Author - by Yves Jusot   Created on October 22, 2020

Here is a step-by-step procedure to see your SenseFly log files in DroneLogbook All these steps are done in eMotion.

First of all, you need to enter your DroneLogbook credentials:

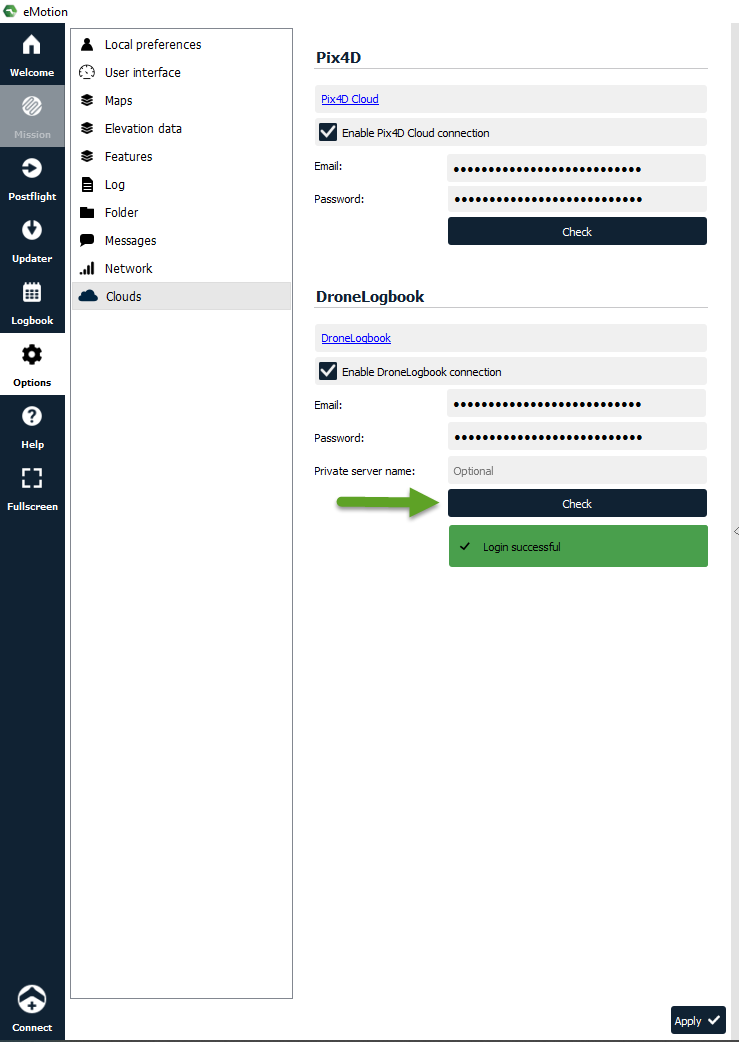

Go in the Options / Clouds section and enter your DroneLogbook account email / password . Optionally if you are part of an organization using a DroneLogbook Private server, enter also the server url. Ex: myserver.dronelogbook.com. (do not enter the https:// in front of the url).

Selection of the flight to send:

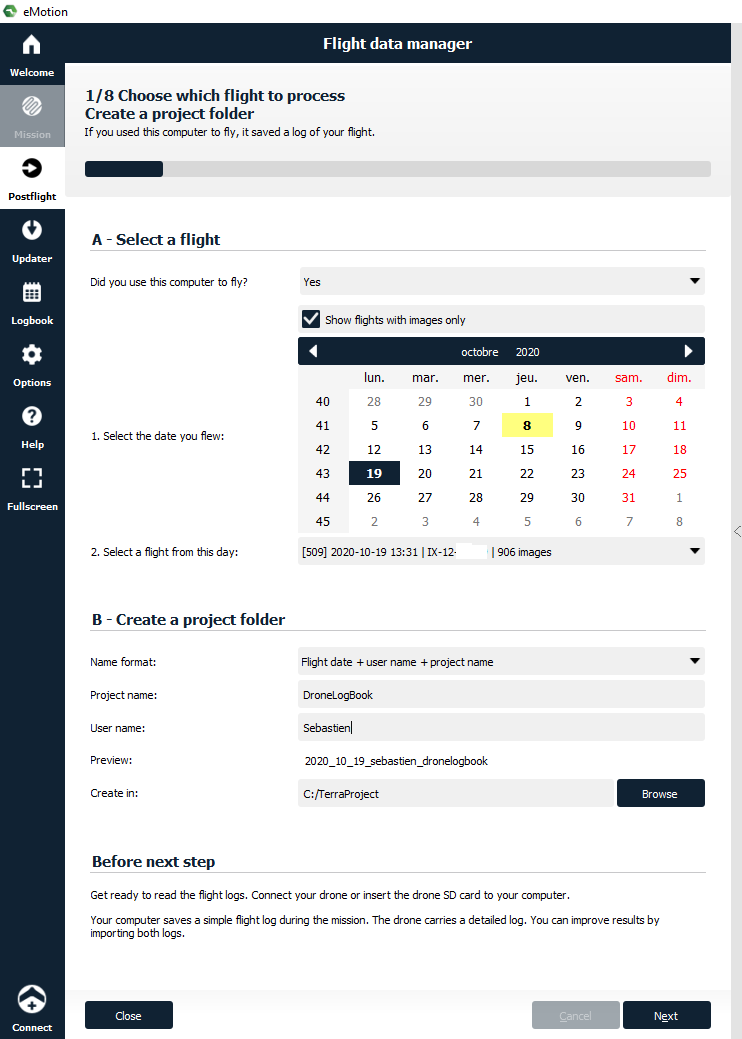

1- In the Flight Data manager, select the flight date in the calendar, and then the flight from this day.

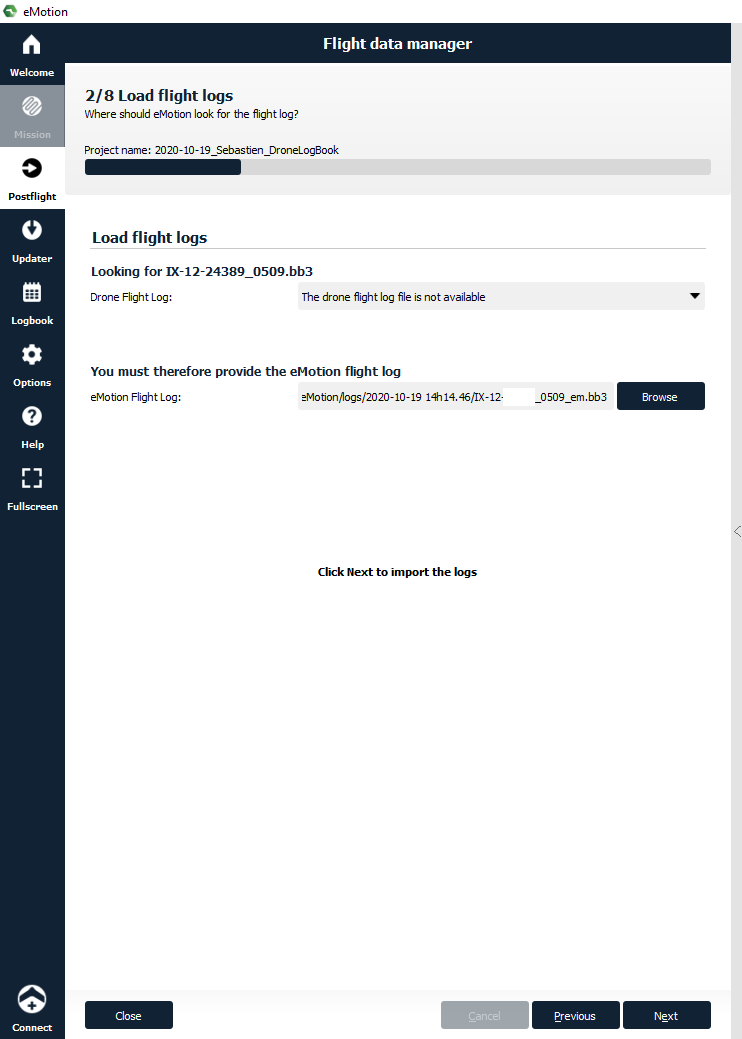

2- Select the BB3 log file: Local version to eMotion.

You can also provide a BB3 log.

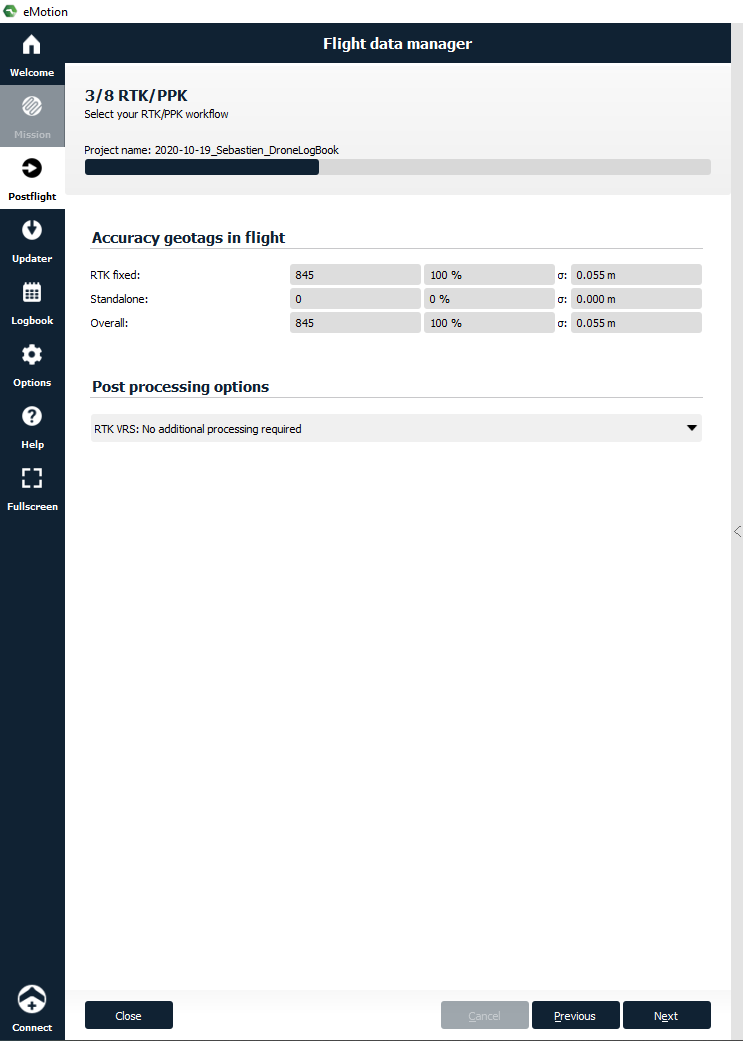

3-No need to make a post-processing to upload to DroneLogbook:

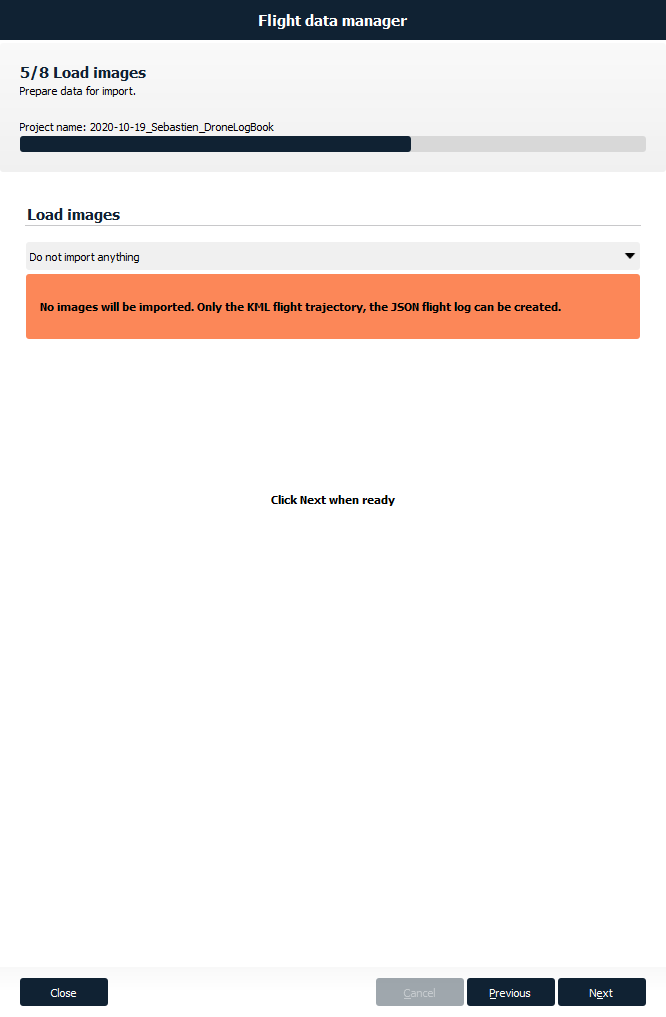

4- No need to import images (not used in DroneLogbook):

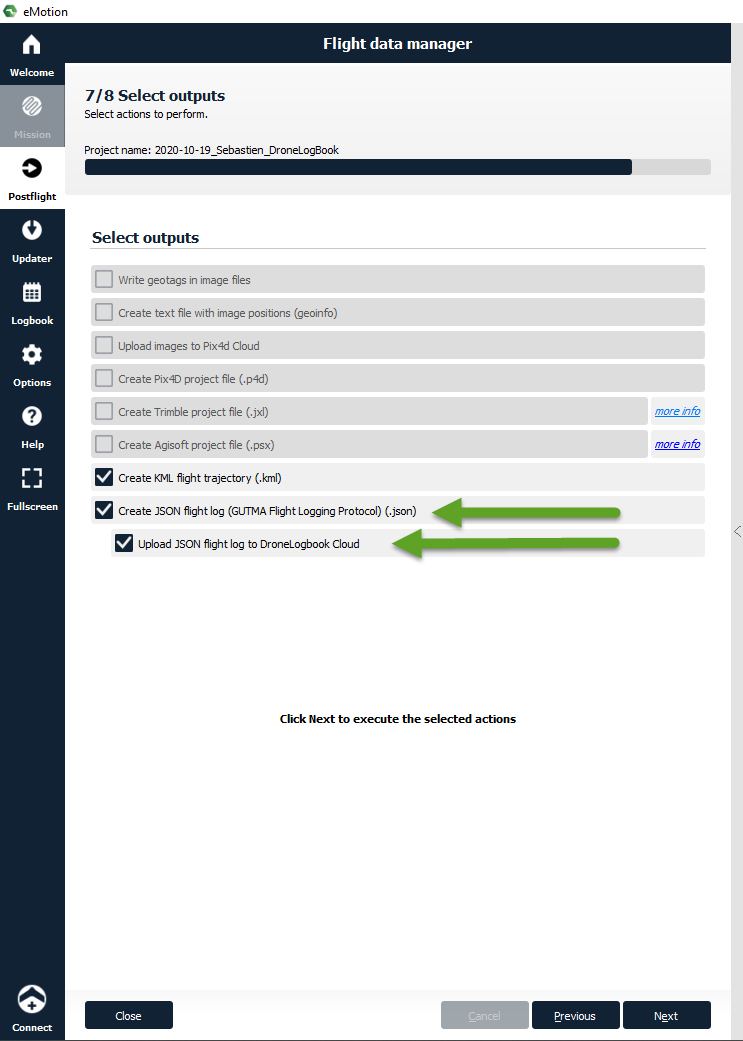

5- Select Outputs: Be sure to check the following 2 boxes :
– “Create JSON flight log”
– “Upload JSON flight log to DroneLogbook Cloud”.

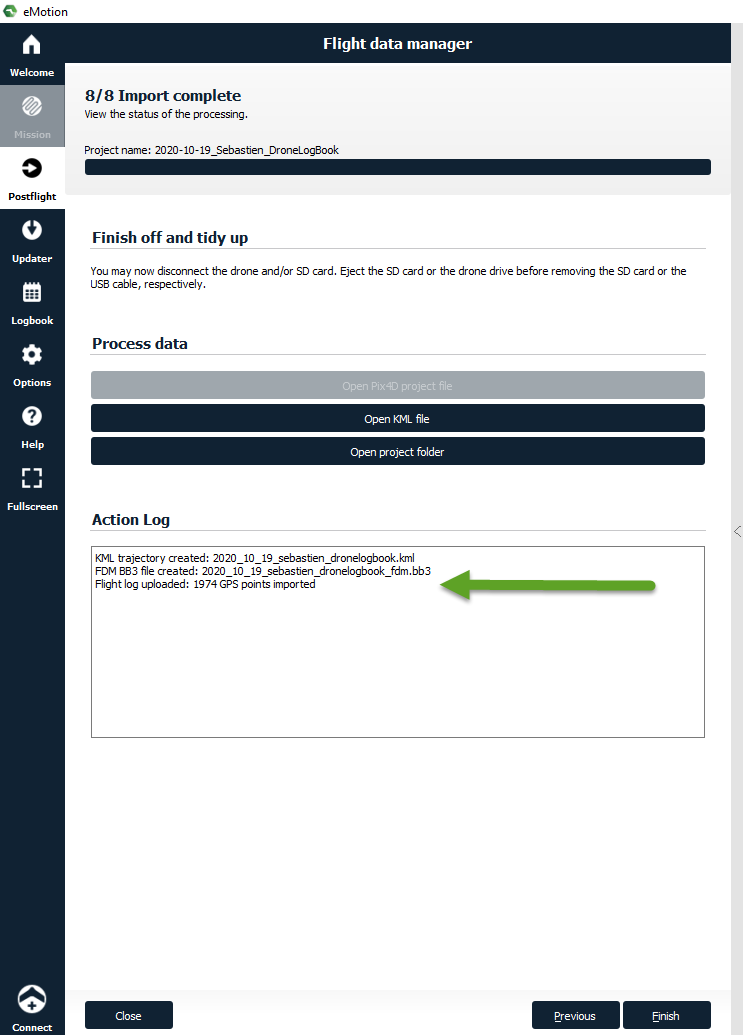

6- Wait a few seconds to see the Upload message:

7- Your flight is now visible in your DroneLogbook account.
